How To Measure Disc Brake Rotor

Welcome to our comprehensive guide on measuring disc brake rotors! Whether you're a bike enthusiast or a novice rider, understanding the measurement process for disc brake rotors is essential for maintenance, upgrades, and overall brake performance. In this detailed article, we will walk you through step-by-step instructions, explaining the significance of accurate measurements and the tools required. By the end, you'll have a solid grasp on this fundamental aspect of disc brake maintenance, enabling you to make informed decisions and ensure optimal braking power. Let's dive in and unveil the secrets of perfecting your disc brake system!

to Disc Brake Rotor and Its Importance in Vehicle Safety

As a leading automotive parts manufacturer, Frontech Auto Parts understands the significance of maintaining optimal braking performance for enhanced vehicle safety. In this article, we will dive into the topic of disc brake rotors and provide you with a comprehensive guide on how to measure them accurately. Understanding the measurements and specifications associated with disc brake rotors will empower you to choose the right replacements or perform proper maintenance, ensuring your vehicle's braking system functions flawlessly.

The Basics of Disc Brake Rotors

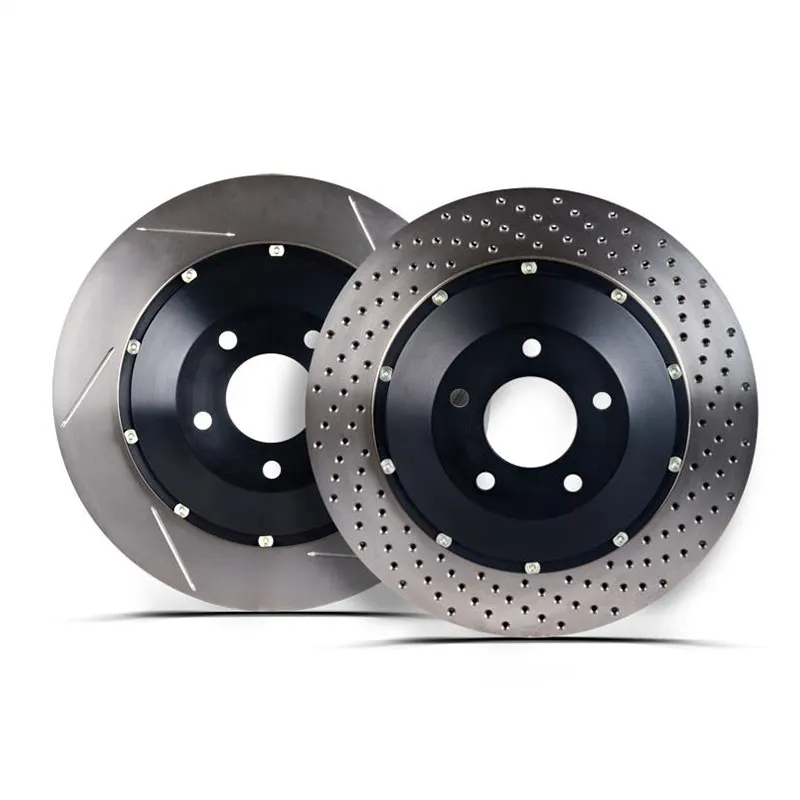

How To Measure Disc Brake Rotor 1

Disc brake rotors play a key role in a vehicle's braking system. They are circular metal discs that connect to the wheel hub and work in conjunction with brake pads to slow down or stop the vehicle. When you press on the brake pedal, hydraulic force is applied to the brake pads, squeezing them against the rotor's surface, generating friction and ultimately slowing down the wheels. However, to ensure optimum performance, it is crucial to measure the disc brake rotors accurately.

How To Measure Disc Brake Rotor 2

Tools Required to Measure Disc Brake Rotors

How To Measure Disc Brake Rotor 3

Measuring disc brake rotors requires a few essential tools. Before starting the measurement process, gather the following tools:

1. Vernier caliper: This precision measuring tool helps gauge the thickness and diameter of the rotor accurately.

2. Micrometer: A micrometer is used to measure the runout of the brake rotor, identifying any deviation from a perfectly flat surface.

3. Dial indicator: It aids in measuring lateral runout, which denotes excessive rotor wobbling.

4. Straight edge or feeler gauge: These tools are used to evaluate rotor thickness variation, ensuring it falls within the specified tolerances.

How to Measure Disc Brake Rotor Thickness

Step 1: Locate the disc brake rotor on your vehicle, usually visible behind the wheel.

Step 2: Use a lug wrench or socket set to remove the wheel and expose the rotor.

Step 3: Clean the surface of the rotor to remove any dirt or debris that may interfere with accurate measurements.

Step 4: Take the vernier caliper and measure the thickness of the rotor at several points around its periphery. Ensure that you measure the thickness within the brake pad contact area.

Step 5: Note down the measurements and compare them to the minimum required thickness provided by the vehicle manufacturer. If the rotor thickness falls below the specified limit, it is time to replace it.

Measuring Disc Brake Rotor Runout and Thickness Variation

Step 1: Attach the dial indicator to a stable point on the brake caliper, allowing the dial indicator tip to touch the rotor's surface.

Step 2: Slowly rotate the rotor by hand while observing the dial indicator. If the needle fluctuates more than the manufacturer-specified tolerance (usually around 0.002 inches or less), it indicates excessive runout. In such cases, the rotor may need resurfacing or replacement.

Step 3: To check for thickness variation, place a straight edge or feeler gauge across the rotor face, ensuring it sits flat against the surface. Measure the gap between the straight edge and the rotor at various points. If the gap exceeds the allowed tolerance, the rotor may require correction or replacement.

By understanding the measurements and specifications associated with disc brake rotors, you can ensure optimal braking performance, promoting vehicle safety. Frontech Auto Parts, a trusted brand in the automotive industry, encourages regular measurements and maintenance to keep your vehicle's braking system in top condition. Remember, accurate measurement plays a vital role in determining when to replace a worn-out rotor or seek professional assistance. Always consult your vehicle's manual or a trusted mechanic for specific measurement guidelines if needed.

Conclusion

In conclusion, measuring disc brake rotors is a crucial aspect of maintaining the performance and safety of your vehicle's braking system. By understanding the different perspectives from which this task can be approached, such as considering the diameter, thickness, and wear of the rotor, we can effectively assess its condition and take appropriate action. Regularly measuring and monitoring the rotor ensures optimal braking efficiency, prevents costly damage, and enhances overall driving experience. Next time you find yourself in need of measuring your disc brake rotor, be sure to refer back to this guide and keep your vehicle on the road with confidence and peace of mind.
